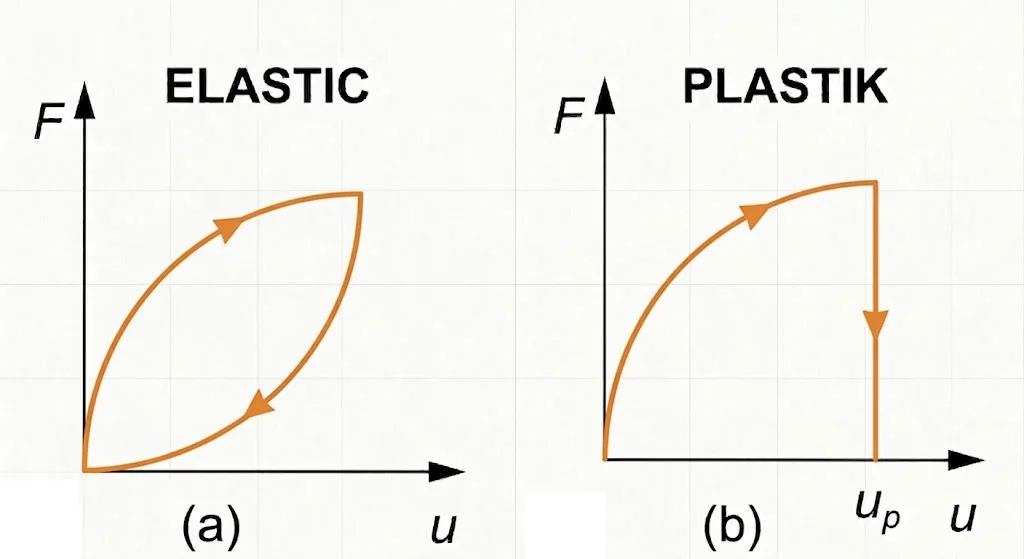

1. Elastic and Plastic Materials
In the study of deformable bodies, the behavior of materials under external loads is classified based on their ability to recover their original shape upon unloading. Materials can be broadly classified into two ideal categories:
- Elastic Material: An ideal elastic material experiences deformation only while subjected to external loads. As soon as the loads are completely removed, all strains within the body disappear, and it returns to its original undeformed geometry.
- Plastic Material: An ideal plastic material undergoes permanent dimensional changes under loading. When the external forces are removed, the material does not return to its original shape; instead, a permanent strain (plastic strain, \(\epsilon_{pl}\)) remains.
The transition between these behaviors is called elastic deformation (which is temporary and fully recoverable) and plastic deformation (which is permanent and unrecoverable).

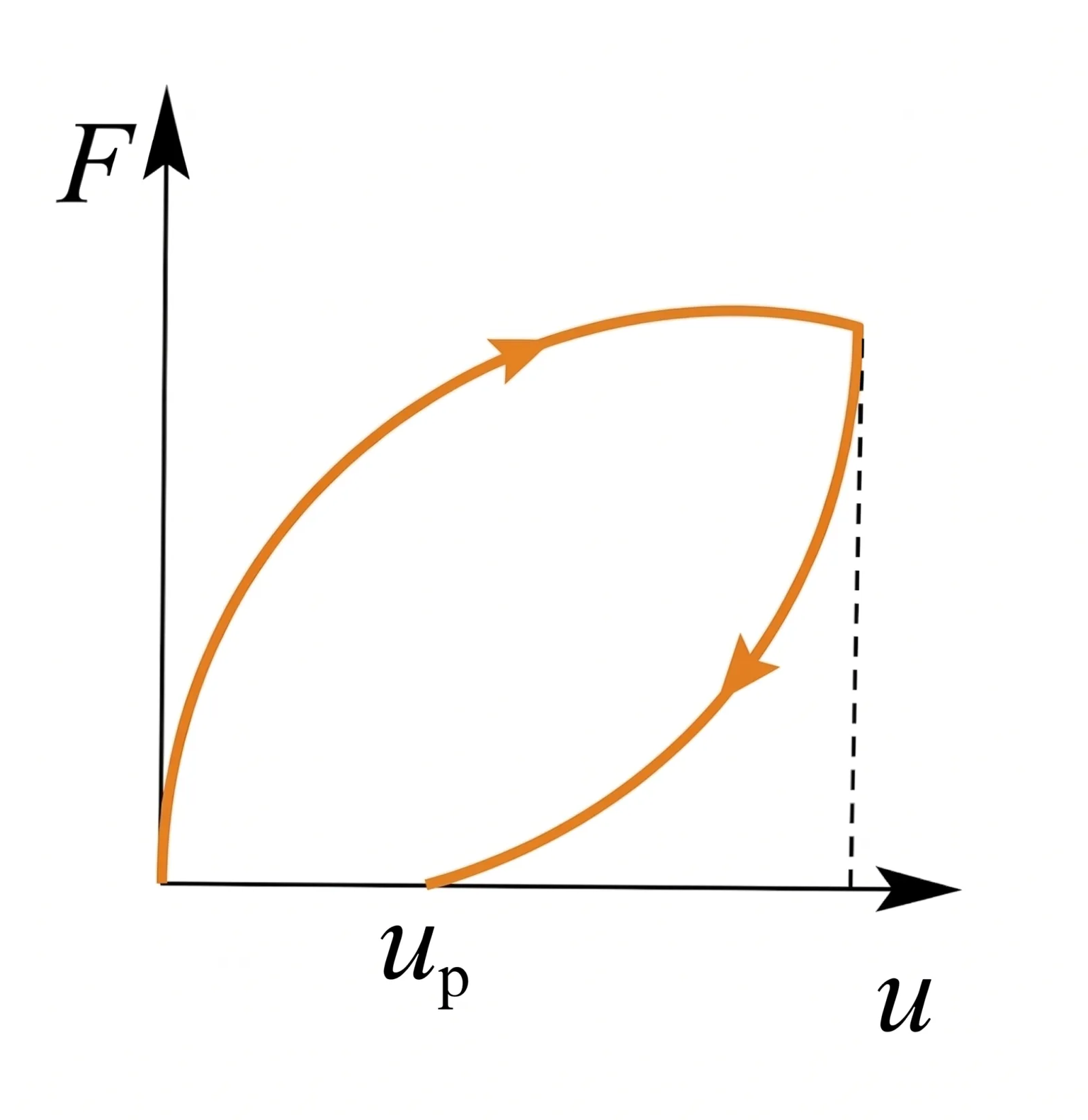

2. Elastic–Plastic Material
Most materials in nature exhibit a combination of both elastic and plastic behaviors. Under certain load levels, when the applied force is removed, only a portion of the deformation is recovered, and the body does not return entirely to its initial position. Instead, a permanent, unrecoverable shape change remains within the material, known as plastic deformation. This combined mechanical response is referred to as elastic-plastic (or elastoplastic) behavior.

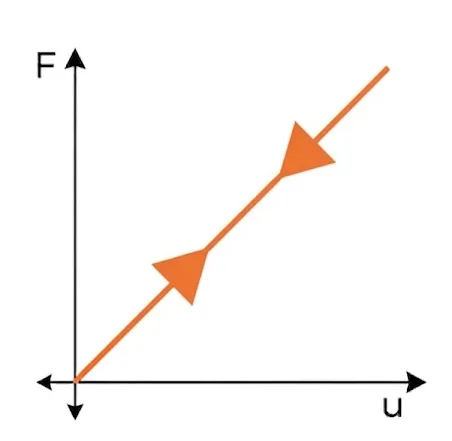

3. Linear Elastic Material
A material is described as linear elastic if the stress developed within it is directly proportional to the strain throughout the elastic region, resulting in a straight-line stress-strain diagram. This fundamental proportional relationship is known as Hooke's Law:
In this equation, \(E\) is the constant of proportionality, known as the modulus of elasticity or Young's modulus. Physically, Young's modulus represents the mechanical material stiffness—its capacity to resist elastic deformation under load at a specific point.
It is vital to distinguish between material stiffness (\(E\)) and structural stiffness (\(k\)), as seen in the structural relationship \(F = ku\). While \(E\) is an intrinsic property of the material itself, structural stiffness \(k\) depends on both the material property (\(E\)) and the physical dimensions of the member (such as its cross-sectional area and length). Knowing this prevents confusing material-level resistance with member-level behavior.
It is crucial to emphasize that Hooke's law is valid only when the material behaves in a linear elastic manner. If the material does not exhibit linear elastic behavior, this proportional relationship ceases to exist, making Hooke's law invalid.
Real materials are complex, so we idealize their behavior to develop mathematical models for engineering analysis.
A common student misconception is that "elastic" and "linear elastic" are synonymous. They are not! Elasticity simply means the material returns to its original shape when unloaded. A material can exhibit nonlinear elastic behavior—for example, polymers and rubber return to their original shape after unloading, but their loading/unloading path is a curved line rather than a straight line. In classical Mechanics of Materials, we assume linear elasticity to maintain mathematical simplicity.

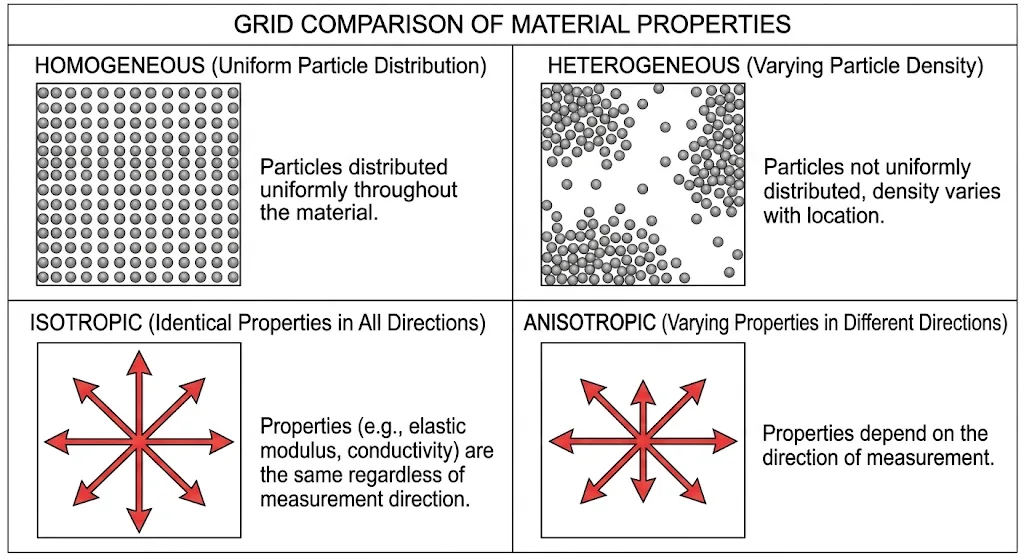

4. Homogeneous Material
A material is defined as homogeneous if it possesses identical physical and mechanical properties at all points throughout its entire volume. In a homogeneous structural member, the material's composition is completely uniform. Mathematically, this means that material constants, such as Young's modulus \(E\), are independent of location:
\(E(x, y, z) = \mathrm{constant}\)
In contrast, a heterogeneous (or non-homogeneous) material has properties that vary from one point to another. In reality, common construction materials like concrete are highly heterogeneous, being composed of a mixture of cement, sand, and large stone aggregates. However, for macroscopic structural calculations, engineers construct a homogeneous idealization at an appropriate scale to make calculations practical. This illustrates the important gap between actual physical materials and our idealized mathematical models.
5. Isotropic Material
A material is defined as isotropic if its physical and mechanical properties are independent of direction at any given point. If an isotropic material is loaded in tension along different directions (e.g., along the longitudinal, transverse, or vertical axes), it will exhibit the exact same mechanical response:
\(E_{axial} = E_{transverse} = E_{vertical}\)
Conversely, materials whose properties depend on the direction of loading are not isotropic. It is important to distinguish between different types of direction-dependent behaviors:
- Orthotropic Material: Displays different mechanical properties along three mutually perpendicular (orthogonal) axes. A classic example is wood; because of its fibrous grain structure, its stiffness and strength are significantly higher along the grain than perpendicular to it (transverse and radial directions). Fiber-reinforced composite laminates are also engineered orthotropic materials.
- Anisotropic Material: This is the most general term for materials whose mechanical properties vary with direction throughout. Unlike orthotropic materials, an anisotropic material does not necessarily possess perpendicular planes of symmetry.
6. Homogeneous Isotropic Material
When the concepts of homogeneity and isotropy are combined, we define a homogeneous isotropic material. This idealized material has mechanical properties that are uniform throughout its entire volume (homogeneous) and are identical in all directions at any given point (isotropic).
In classical Mechanics of Materials, the vast majority of analytical derivations and structural formulas (such as beam bending, torsion, and axial deformation equations) are based on the assumption of a homogeneous, isotropic, and linear elastic material. Under these assumptions, the material's mechanical response can be fully characterized using only three standard constants:
- Young's Modulus (\(E\)) relating normal stress and normal strain.
- Shear Modulus (\(G\)) relating shear stress and shear strain.
- Poisson's Ratio (\(\nu\)) relating transverse and lateral strains.
7. Important Conceptual Distinctions
To avoid confusion, students should carefully distinguish between the four fundamental terms used to describe material idealizations. These terms describe entirely independent characteristics and can coexist in a single material:
| Concept | Physical Definition | Core Focus |
|---|---|---|
| Elasticity | The ability to fully regain original dimensions after unloading. | Shape Recovery (vs. Permanent Plasticity) |
| Linearity | The direct proportionality between force and dispalcement | Proportionality of response (obeying Hooke's Law) |
| Homogeneity | Properties are identical at every location in the body. | Location Independence (vs. Heterogeneous variance) |
| Isotropy | Properties are identical in all directions at a single point. | Direction Independence (vs. Anisotropic fibers) |
A structural element can be all four simultaneously. For example, a mild steel rod operating within its working load limits behaves as a homogeneous, isotropic, linear elastic material. Each of these descriptors addresses a different question: Will it return to its shape? (Elastic) Is the curve straight? (Linear) Is it uniform throughout? (Homogeneous) Is it identical in all directions? (Isotropic)
