1. What is Mechanics?
Mechanics is the branch of physical science that describes and predicts the conditions of rest or motion of bodies subjected to the action of forces. As one of the oldest physical sciences, it serves as the scientific foundation for major engineering disciplines, particularly civil, mechanical, and structural engineering. Its primary role in engineering is to predict physical phenomena, providing the critical mathematical formulas and physical principles needed to evaluate whether structures can support their intended loads safely.
2. Branches of Mechanics

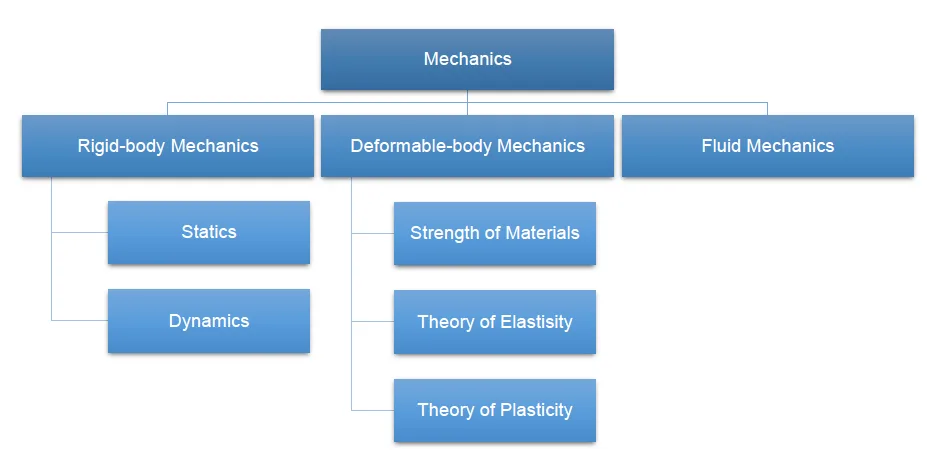

Mechanics can be broadly classified into rigid-body mechanics, deformable-body mechanics, and fluid mechanics.
- Rigid-Body Mechanics: Assumes that the solid object is perfectly rigid and undergoes zero shape change under any load. It is subdivided into Statics (forces on bodies at rest or moving with constant velocity) and Dynamics (accelerating bodies).
- Deformable-Body Mechanics: Investigates the internal stress, strain, and shape change of actual structures under external forces, forming the basis for Mechanics of Materials.
- Fluid Mechanics: Studies the behavior of incompressible fluids (like water in hydraulics) and compressible fluids (like gases).

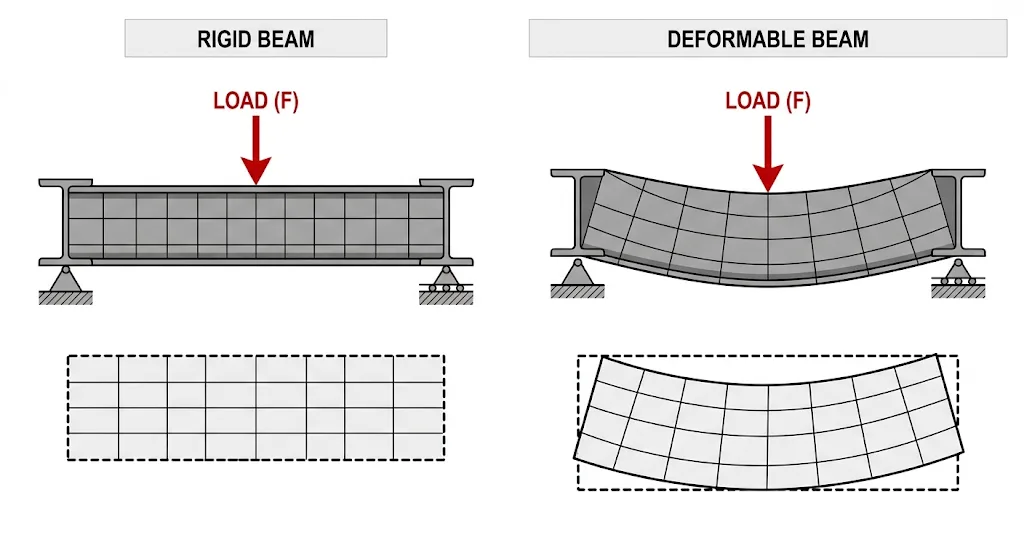

3. Rigid Bodies vs. Deformable Bodies
The distinction between rigid and deformable bodies represents the transition from global equilibrium analysis in Statics to localized structural safety in Mechanics of Materials. In the physical world, no material is infinitely stiff, but we use these two categories to simplify our engineering calculations:
- Rigid Body: An idealized solid body that undergoes absolutely zero change in shape or size when subjected to external loads. The physical distance between any two points on a rigid body remains perfectly constant. (We use this simplified assumption in Statics and Dynamics to easily calculate support reactions).

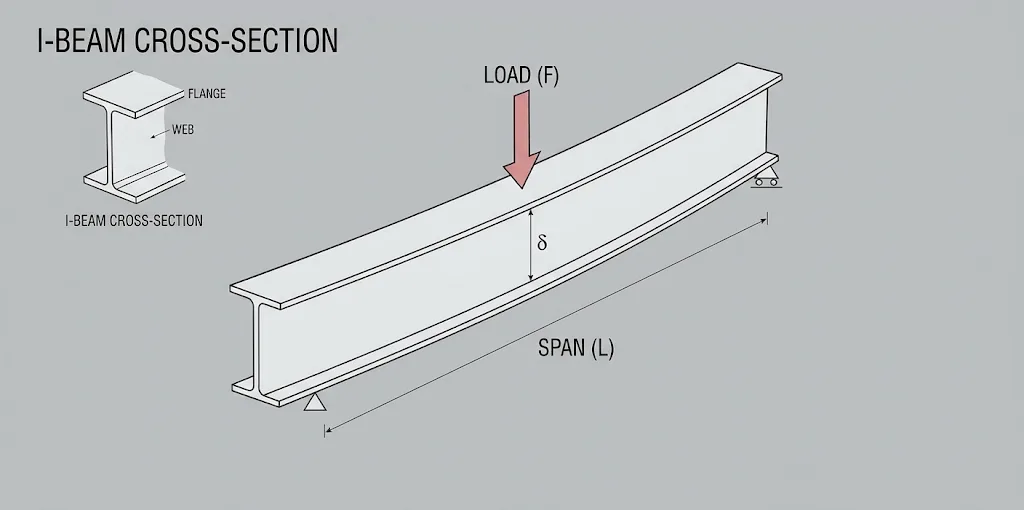

- Deformable Body: A real-world solid body that deforms (stretches, compresses, bends, or twists) under external forces. (We study these in Mechanics of Materials because no engineering material is infinitely stiff, and we must analyze these deformations to prevent structural failure).
The key differences between these two behaviors are summarized in the table below:
| Feature / Assumption | Rigid Body | Deformable Body |
|---|---|---|
| Relative Particle Distance | Remains perfectly fixed before and after loading | Changes relative positions under loading |
| Material Influence | Neglected (material stiffness is not required for rigid-body equilibrium analysis) | Crucial (elastic modulus, Poisson's ratio, etc. are used) |
| Primary Fields | Statics and Dynamics | Mechanics of Materials & Theory of Elasticity |
| Primary Focus | External forces, supports, global equilibrium | Internal forces, stresses, strains, safety, and failure |
4. What is Strength of Materials?
Strength of Materials (or Mechanics of Materials) is a core discipline of deformable-body mechanics that examines the relationships between external forces applied to a body and the internal effects, stresses, and strains generated within the material. Instead of analyzing bodies as abstract rigid objects, it examines real-world materials that deform under loads. Key concepts in this field include:
- Deformation: The physical change in size and shape of a solid body when external loadings are applied.
- Internal Forces: The internal resistance forces (such as normal force, shear force, and bending moments) generated within the material to balance external loads.
- Stress (\(\sigma\) or \(\tau\)): The intensity of these internal forces distributed over a specific cross-sectional area (force per unit area).
- Strain (\(\epsilon\) or \(\gamma\)): The geometric measure of deformation, expressing length or angular changes per unit of original geometry.
5. Types of Problems in Mechanics of Materials
Engineers solve two fundamental types of problems in Mechanics of Materials to ensure the structural integrity of machines and civil infrastructures:
- Analysis Problems (Safety Checks): In an analysis problem, the geometry, material properties, and loading are known. The resulting stresses, strains, deformations, and stability are determined to assess whether the member satisfies the required safety and serviceability criteria. For example, the maximum stress should satisfy the following criterion:
\(\sigma_{max} \le \sigma_{allow}\)
- Design Problems: In a design problem, the applied external loads and allowable stresses are known. The goal is to determine the required geometric dimensions (such as cross-sectional area or profile type) of a structural member so that it carries the loads safely and economically. For example, for a member subjected to a centric axial load and assuming a uniform normal stress distribution:
\(A_{req} = \frac{P}{\sigma_{allow}}\)
To account for uncertainties in loading, material variability, environmental deterioration, and analysis approximations, engineers utilize a Factor of Safety (F.S.) greater than 1.0 to bridge the gap between experimental failure stress and safe working stress:
\(F.S. = \frac{\sigma_{fail}}{\sigma_{allow}}\)
For instance, if a steel yields at 250 MPa and the required F.S. is 2.0, the allowable working stress becomes 125 MPa.

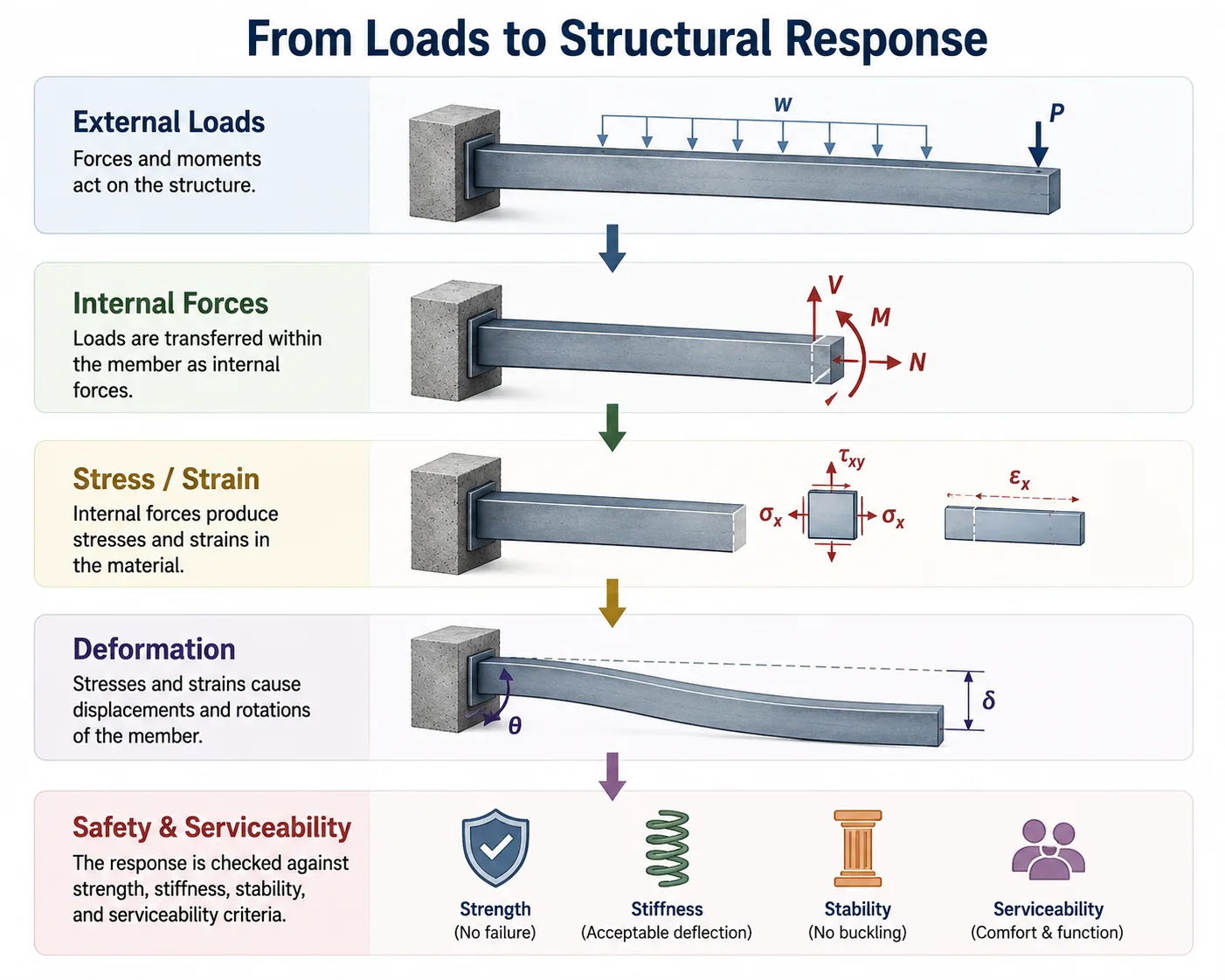

6. From External Loads to Structural Response
A structural member subjected to external loads develops internal forces within the material. These internal forces produce stresses and strains, which in turn cause deformation of the member. The resulting structural response is evaluated in terms of strength, stiffness, stability, safety, and serviceability.
This sequence provides a general framework for understanding Mechanics of Materials: loads produce internal actions, internal actions produce material response, and the resulting response is evaluated against engineering requirements.
